PSC-801 Power Sequencer Controller

  • Diverse Power Interfaces: Equipped with 8 controllable universal power outlets and 8 backlit buttons on the front panel, allowing easy power control. Additionally, it features 1 universal socket and 2 USB power output ports for regular power supply.
  • Customizable Switching Sequence: Each socket can be set with a delay time of 1 to 999 seconds, executing sequential or alternate switching based on usage needs.
  • Precise Timing Controls: Each socket supports scheduled timing switches, accommodating up to ten pre-scheduled timeframes.
  • Full-Color Touchscreen Display: The 2.2-inch TFT-LCD touchscreen displays the current time, voltage values, and related settings. The front panel’s rotary knob allows easy configuration of sequential switch seconds, scheduled timing switches, and other functions, providing precise control.
  • Flexible Expansion with Various Ports: Equipped with RS-232 or RS-485 and I/O control interfaces, and featuring independent serial input/output ports, it can connect with up to 255 controllers.
  • Integration with Various Control Devices: With multiple power switch controls and diverse ports, it integrates seamlessly with conference, broadcast, and other device systems for environmental control.
  • Comprehensive Protection for Safety and Reliability: Automatically shuts off power in case of excessively high or low voltage, effectively preventing damage caused by voltage instability, ensuring the safety and reliability of your equipment and user experience.
  • Seamless Integration for Remote Control: Equipped with remote control trigger control points for external connection to other devices for remote control. In case of a short circuit, the power supply will automatically open sequentially, while in case of an open circuit, it will sequentially close in the opposite direction, enhancing system integration convenience.
Product Spec

PSC-1202 Sequence Power Control Unit

  • Turn on/ off power sequential control
  • RS-485 port control up to 15 apparatuses
  • RS-232 or USB port to connect control software and other environmental control system (AMX or Crestron).
  • AC overload protector
  • Turn on/ trigger on contacts
Product Spec

PSC-A122 Power Control Unit

  • AC auto-on/ off control
  • Turn on/ trigger on contacts
  • RS-485 port (control to 8 apparatuses)
  • AC overload protector
User Instruction

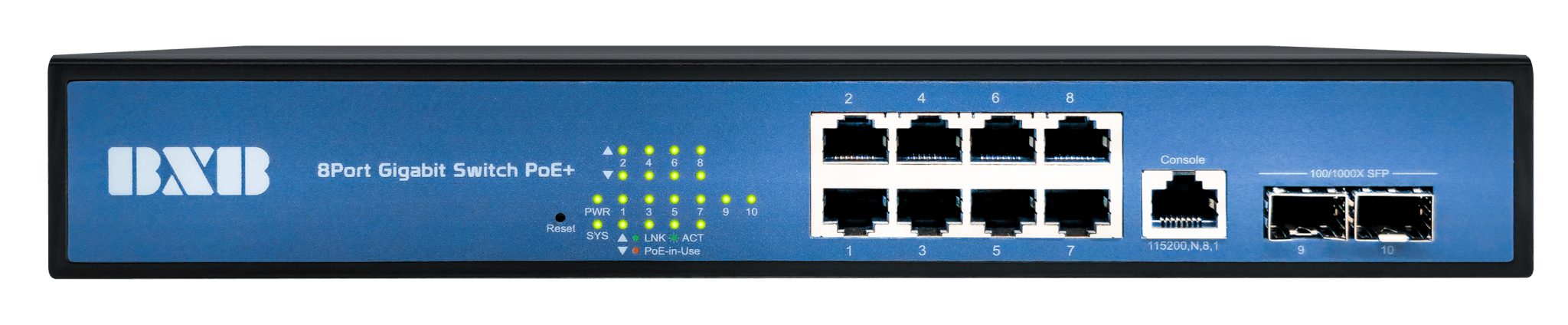

GS-1002P-V2 8 Port POE+Gigabit Switch

  • Provide & manage the power of PTZ cameras, IP phones, 11ac wireless AP, IP surveillance, and other powered devices, offering a quick and cost-effective POE
    network solution for enterprises, hotels, education, and smart building.

  • 8 sets of 10/100/1000 Mbps RJ45 copper ports complied with IEEE 802.3at POE, end-
    span PSE. Remote power feeding up to 100M in standard mode.

  • Supports SFP auto-detection and dual speed. The distance can be extended from 550M to 2KM (multi-mode fiber) and up to 10/20/30/40/50/70/120KM (single-
    mode/WDM fiber), easily realizing ultra-long distance transmission.

  • POE management via Web-based interface: remotely check and control POE power
    budget, POE port function, power feeding priority, POE schedule, per POE port power
    limitation, and so on.

  • Robust QoS & DSCP features: empowering the enterprises to take full advantage of
    the limited network resources.

  • Supports DHCP snooping, STP BPDU, and ARP inspection: prevents from attack and
    constructs highly-secured network.
